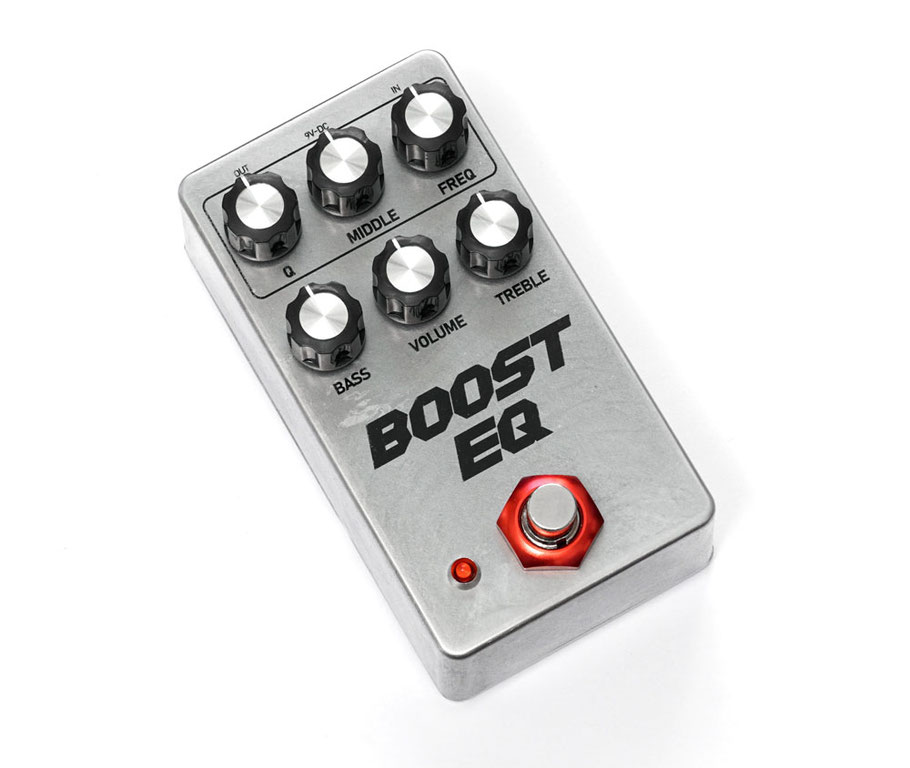

Boost EQ

Useful tool and very good equalizer. Inspired by the VFE Rocket EQ.

The BOOST EQ provides dual shelving filters plus a fully parametric band, for the ultimate compact EQ boost pedal.

VOLUME - controls the output of the pedal
MIDDLE - cut/boost control for the mid-band, up to 16dB of boost or cut
FREQ - controls the center frequency of the mid-band, from 60Hz to 6kHz.
Q - controls the bandwidth, or Q, of the mid-band. Clockwise = sharper, narrower bandwidth
TREBLE - shelving treble boost/cut, up to 13dB of boost or cut
BASS - shelving bass boost/cut, up to 13dB of boost or cut
